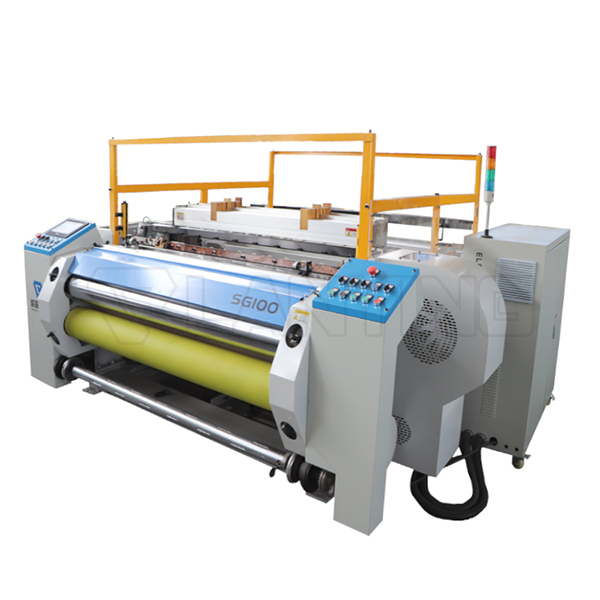

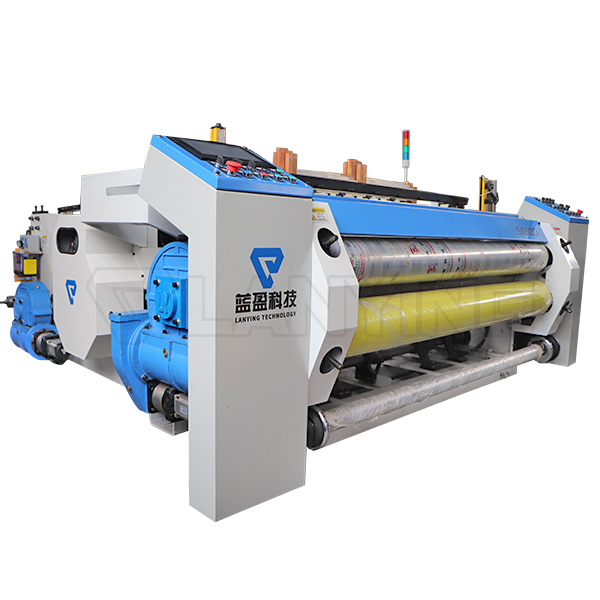

SG100系列数控金属丝网编织机主要适用于高目数丝网的编织，具有噪音小、花色多样、维护简便的特点。
主要技术参数
型号： SG100/160-1JD
标准幅宽：1600 mm
丝径范围：0.03-0.3mm
编织密度：平织方孔20-400目/英寸、斜纹编织≤600目/英寸、密纹编织3600目/英寸（纬密）
转速： 80-100转/分钟转/分钟（实际转速取决于编织宽度和编织的规格），变频器调速
综框及形式：旋转电子多臂机，铝合金综框20片（选装可达2-20片）
数控机构：单向直线引纬或双向引纬。采用交流伺服电机数控送经，张力数据实时显示并自动调整，交流伺服电机数控卷网
基础张力：15000牛/米
重量：约4700kg
外形尺寸：2750mmX3600mmX1500mm

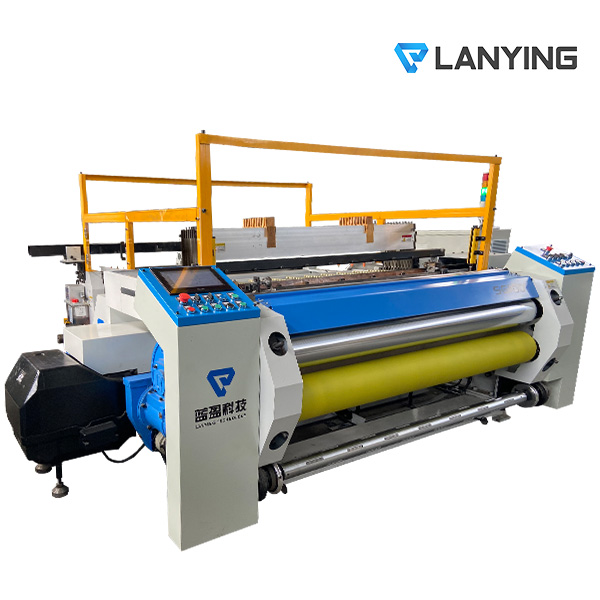

SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. The user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. The weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.
SG100P Series mainly used to weave high precision fine mesh, such as test sieve, screen printing mesh,etc. The accuracy already surpass standard requirements.
| Wire diameter | 0.016-0.3mm | ||
| Weaving density | Plain weave square hole 40-600mesh/inch; twilled weave upto 600mesh/inch | ||
| Nominal width
(special width on request) |
1.3m | 1.6m | 2m |
| Speed (the actual speed depends on the weaving specs and width) | 80-120RPM | 80-100RPM | 65-80RPM |
| Total power | 7.5KW | 8.5KW | 8.5KW |
| Size (L*W*H) mm | 2750X3300X1500 | 2750X3600X1500 | 2750X4000X1500 |
