标准幅宽:2000 mm



转      速:85转/分钟(实际转速取决于编织宽度和编织的规格),变频调速




重      量:5000kg

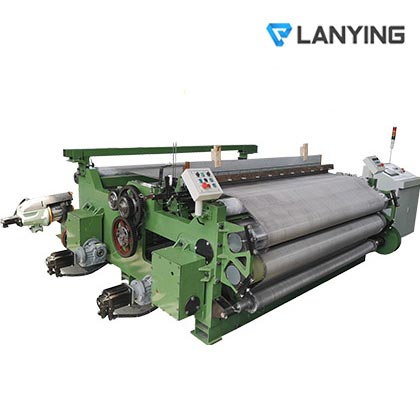

SG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.

SG130 Standard series is suitable for normal fabric weaving, SG130S is specially designed to weave medium heavy mesh with big wire diameter such as 60*0.19mm, 20*0.4mm, etc, the weaving speed could reach up to 60-100RPM (depends on weaving width and specs).

Main Technical Parameters:

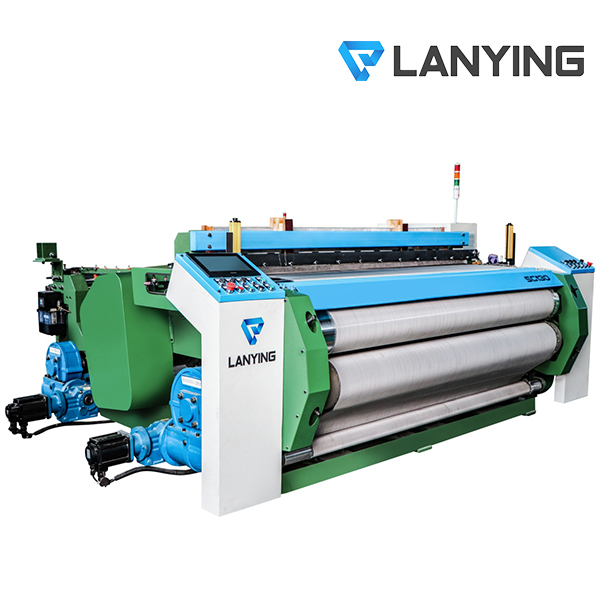

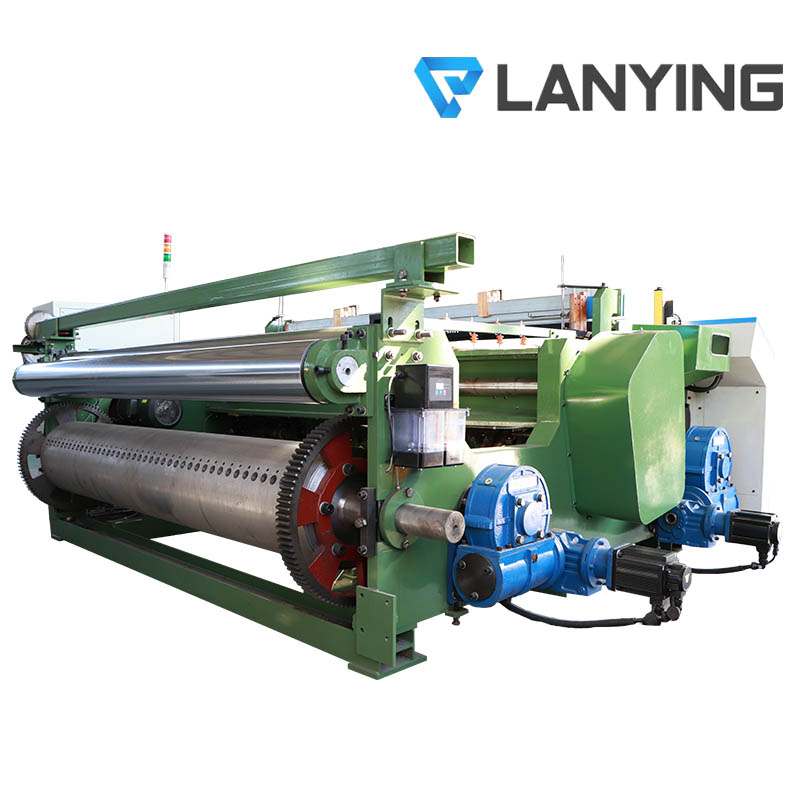

Model no.: SG130/200-1JD

Wire diameter: 0.06-0.45mm

Nominal weaving width: 2000mm (arbitrarily adjust width, special width on request)

Weaving density: plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch

Speed: 85RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.

Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.

Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.

Beat-up form: single

Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)

Wire material: Metal wires such as stainless steel, iron, bronze, copper, phosphate bronze, aluminum, platinum, polyester, plastic, etc , and non-ferrous wires.

Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.

Basic tension: 20000N/M

Size(L*W*H)mm: 2750X4000X1500

Weight: 5000KG
