SG130系列标准型数控金属丝网编织机具有编织范围宽、精度高、噪音小、花色多样维护简便的特点，可编织不锈钢、铁、铜、黄铜、磷铜、铝、铂金、聚酯、塑料等材料的金属和非金属丝网。
主要技术参数
标准幅宽：2200 mm
丝径范围：0.03-0.4mm
编织密度：平织方孔40-400/英寸
转 速： 75~85转/分钟（实际转速取决于编织宽度和编织的规格），变频无调速
综框及形式：踏盘拱综（可选旋转电子多臂机），铝合金综框2-20片（可选）或钢综框
数控机构：单向直线引纬。采用交流伺服电机数控送经，张力数据实时显示并自动调整，交流伺服电机数控卷网
基础张力：20000牛/米
重量： 约5850kg
外形尺寸：3750X2800X1400mm
SG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
SG130 Standard series is suitable for normal fabric weaving, SG130S is specially designed to weave medium heavy mesh with big wire diameter such as 60*0.19mm, 20*0.4mm, etc, the weaving speed could reach up to 60-100RPM (depends on weaving width and specs).
Main Technical Parameters:

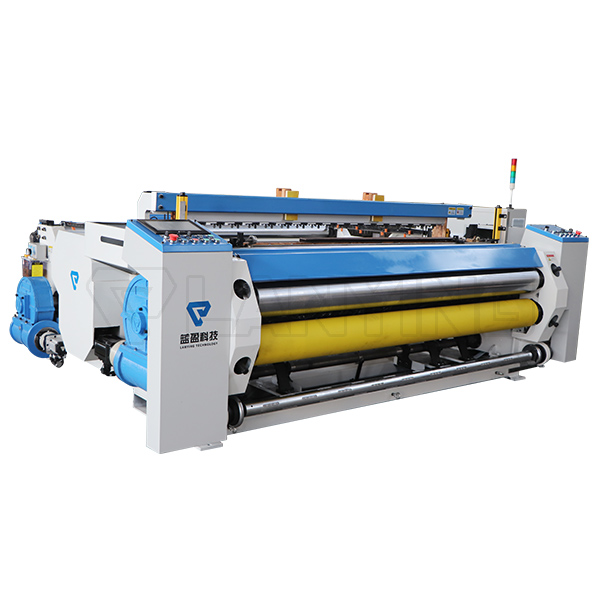

Model no.: SG130/220-1JD
Wire diameter: 0.06-0.45mm
Nominal weaving width: 2200mm (arbitrarily adjust width, special width on request)
Weaving density: plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch
Speed: 80RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.
Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.
Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.
Beat-up form: single
Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)
Wire material: Metal wires such as stainless steel, iron, bronze, copper, phosphate bronze, aluminum, platinum, polyester, plastic, etc , and non-ferrous wires.
Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.
Basic tension: 20000N/M
Size(L*W*H)mm: 2750X4200X1500
Weight: 5300KG
